Location: HOME > PRODUCTS > Paste

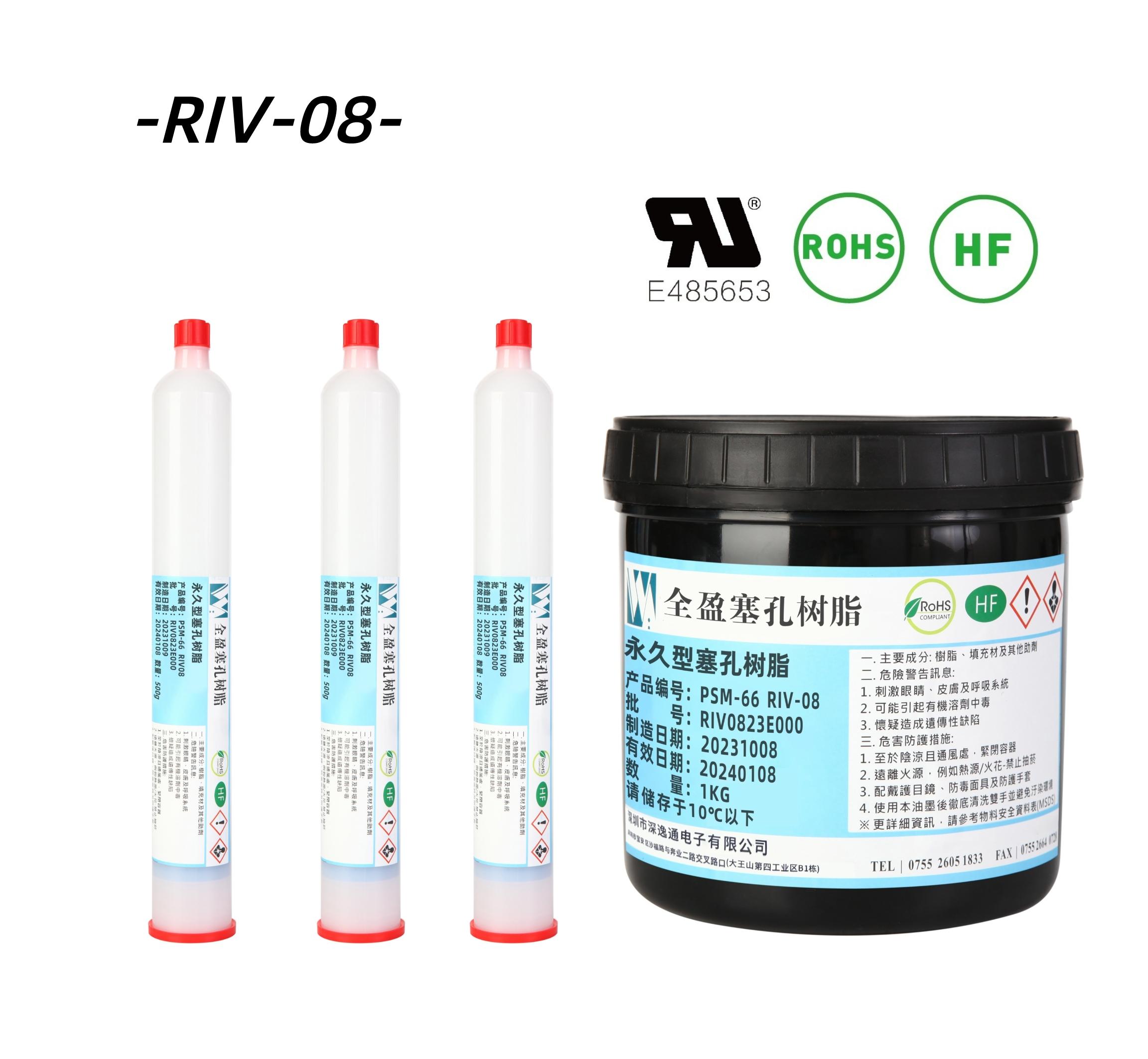

PSM-66 RIV-08

PSM-66 RIV-08 plug hole resin is a halogen-free product, no solvents and other harmful volatiles in the resin, this resin is a low-temperature curing resin for high TG, low CTE, suitable for use in high-frequency, high-speed materials and mixed-pressure plates, excellent high-temperature resistance, no cracking, low diffusion, low water absorption, strong adhesion of the excellent resin.


Introductions

公司簡介-深逸通樹脂 - 副本_01.png

Fields of application

PSM-66 RIV-08 plug hole resins are used in high value-added products such as PTFE+Backdrill+Mixed Press, POFV, HDI and others.

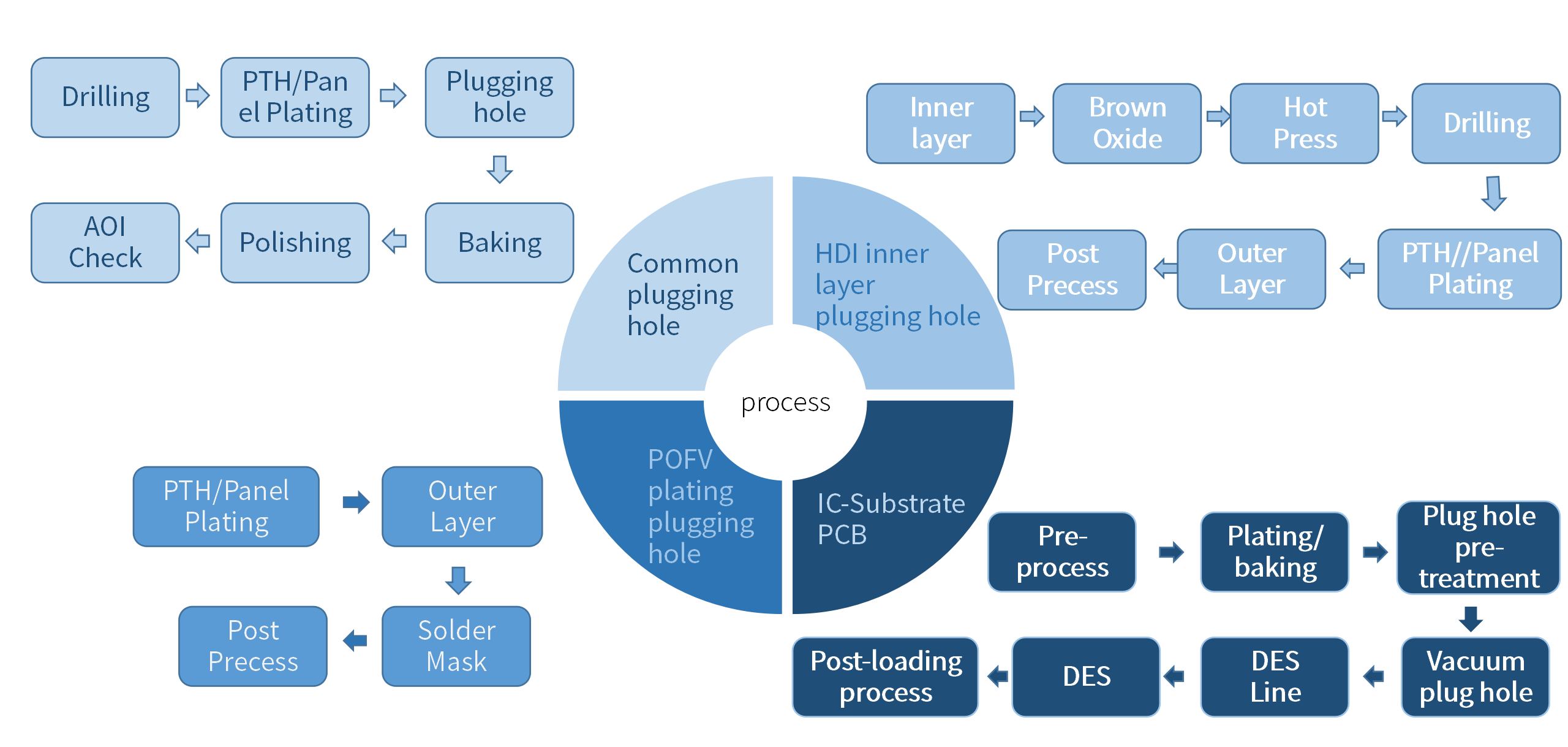

Illustration of plug holes for each type of plate


Technical Specifications

NO.

Physical

 indicator

Test MethodsReference StandardTest results
1Product Appearancevisual assessment/Yellowish white
2Solid ContentThermal Weightlessness GB 1725-79100%
3TgTMA(℃)IPC-TM-650 2.4.24160-170
4CTE
TMA(<Tg)α1(ppm)IPC-TM-650 2.4.2440-50
TMA(>Tg)α2(ppm)IPC-TM-650 2.4.2490-100
5Water AbsorptionGravimetric method(%)IPC-TM-650 2.6.2.1<0.1
6HardnessPencil methodIPC-TM-650 2.4.27.2≥7H
7Insulation Resistance Voltage method(Ω)GB/T 10064-20061-3*1013
8AdhesionBaige +3m tape methodIPC-TM-650 2.4.1100/100
9Heat-proof material

Reflow soldering

260℃.60sec.3 cycle

IPC-TM-650 2.1.1.2Pass

Thermal Stress

288℃.10sec.5 cycle

IPC-TM-650 2.6.8Pass
10Chemical corrosion resistance 10wt% NaOH 25℃*30minIPC-TM-650 2.3.4.3Pass
11TCT test-50℃/30minó150℃/30minIPC-TM-650 2.6.7.2Pass
1000cycles
12

Viscosity

(25℃)

VISCOMETER TV-06-400-600
