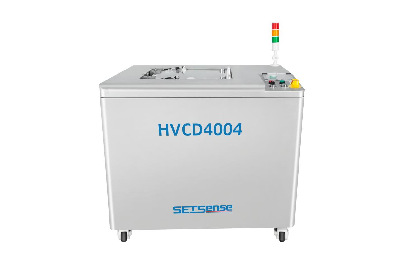

Vacuum Centrifugal Defoamer

HVCD4004

Descriptions

A three-phase asynchronous motor is utilised to control the rotational speed and the vacuum is controlled by a single-stage rotary vane vacuum pump to ensure stable and reliable performance. Under vacuum conditions, the high-speed rotation of the paste can effectively remove the adulterated air and realise the high efficiency of debubbling of the recycle paste.



Introductions





Specification


Size

1064*898*1285mm

(Includes three-colour lamp 335mm)

Weight

400KG

Vacuum

≤-99.5kpa

Adjustable Speed Range

(50-950) rpm

(recommended operating limit 800 rpm)

NO. of cartridge

560g×6pcs/times

Individual weight ±2g deviation

Cartridge Size

φ43×330mm

Production Capacities

20 min/cycle

Paste : 0.5kg/unit

(6 units can be removed at a time)

Production Capacity (KG)

Speed (rev/min)

Hourly production

9

800

Daily output (22 hours)

198

800

Monthly output (26 days)

5148

800

Communal Requirement

Voltage Requirements

Three-phase AC 380V (three-phase five-wire system), 2.3KW, 50HZ

Remarks: The main power supply outside the electric box is connected by the customer.

Operating Environments

Temperature requirement: 22±2℃

Humidity requirement: 50±5%
