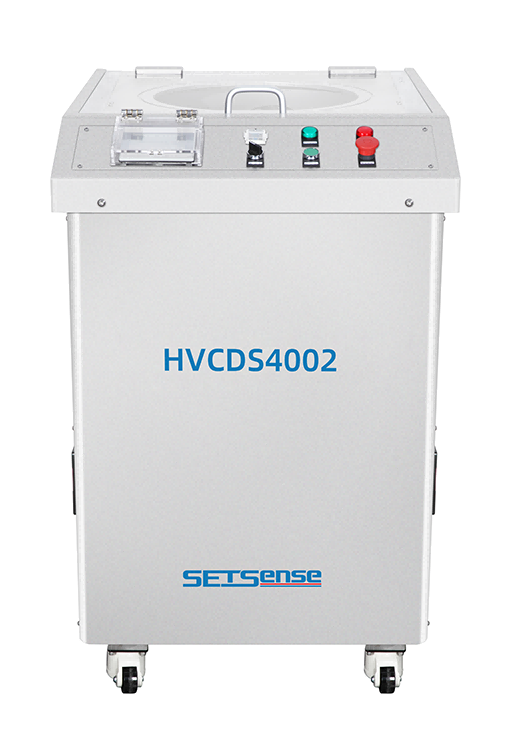

HVCDS4002
HVCDS4002

Can De-Foaming Machine

HVCDS4002


Descriptions

It adopts three-phase motor frequency converter to control the rotational speed and single-stage rotary vane vacuum pump to control the vacuum in order to ensure the stable and reliable performance. In the vacuum condition, high speed rotating paste can effectively remove the adulterated air and realise the efficient defoaming of canned paste.





Introductions




Main Function

In the vacuum conditions, high-speed rotation of the canned paste effectively removes adulterated air.

Product Specifications

Size

652*832*1082mm

Weight

280KG

Vacuum

≦-99.5kpa

Adjustable Speed

Range

0-600r/min in Revolution and

0-300r/min in rotation

Paste capacity

2×1kg/pot,

the dimensions of the pot:φ121.6×78mm

The rotatespeed

0-600r/min(adjustable),

recommended operating limit:450RPM

paste tank dimensions

φ121.6×78mm

Pumping time

≧600S,recommended time for defoaming:600S

Production Capacity

10min/cycle

Each pot :1kg/pot(deal with 2 pots each time)

The production capacity

The speed

(r/min)

The hourly capacity

12

500

The daily capacity(22 hours)

264

500

The monthly capacity(26 days)

6864

500

Communal Requirement

Voltage Requirements

Voltage:3P AC 380V/N/PE,2KW,50HZ

Remarks: Mains power supply outside the electrical box is connected by the customer.

Operating Environments

Roomtemp:22±2℃,Roomhumidity:50±5%
